Reliable Hot Plate Welding Solution for Plastic Manifold Plates

Product Overview

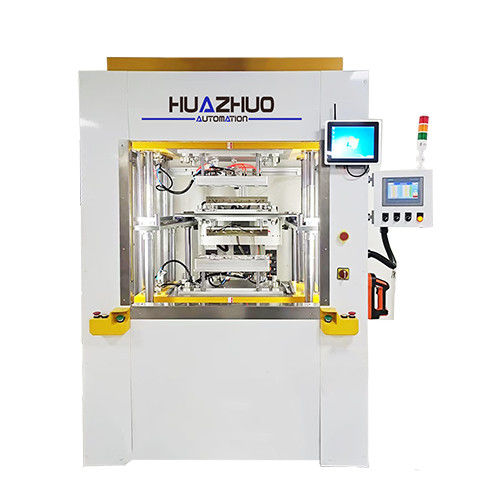

Hot Plate Welding Machine for Plastic Manifold Plates

The Servo Hot Plate Welding Machine is specifically designed for plastic manifold plate (flow channel plate) welding, where high weld strength, sealing performance, and consistency are critical.
With a large welding area of 1200 × 900 mm, the machine is ideal for medium to large-sized manifold plates used in automotive and industrial fluid systems.

The servo-driven system ensures precise positioning, stable pressure control, and repeatable welding quality, meeting the demands of high-reliability applications.

Hot Plate Plastic Welding Process

The hot plate welding process uses a temperature-controlled heating plate to uniformly melt the joining surfaces of plastic parts.
After heating, the plate retracts and the parts are pressed together under controlled pressure to form a strong, leak-proof weld.

This process is especially suitable for manifold plates with complex internal flow channels, where airtightness and weld integrity are essential.

Key Advantages

• Large Welding Area (1200 × 900 mm)
  Suitable for large plastic manifold plates and multi-channel components

• Servo Drive System
  High precision, smooth motion, and excellent repeatability

• Strong and Leak-Proof Welds
  Ideal for components requiring airtight or watertight sealing

• Wide Material Compatibility
  Supports PP, ABS, PA66, PE, PET, PBT, and other thermoplastics

• Stable Temperature Control (6KW Heating Power)
  Ensures uniform melting and consistent welding quality

• Adjustable Welding Time (0.1–10 s)
  Flexible to different material thicknesses and process requirements

Products

This machine is suitable for welding:

• Plastic manifold plates / flow channel plates

• Fluid distribution plates

• Industrial plastic housings with internal channels

• Automotive functional plastic components requiring sealing performance

Application Scenarios

• Automotive Industry
  Manifold plates for cooling systems, fluid control modules, and functional plastic assemblies

• Industrial Equipment
  Plastic flow channel plates used in fluid, air, or cooling systems

• Energy & Electronics
  Plastic components requiring stable structure and leak-proof welding

After-Sales Service

We provide comprehensive after-sales support to ensure long-term stable operation:

• On-site or remote installation and commissioning

• Operator training for safe and efficient use

• Process support and troubleshooting

• Preventive maintenance and spare parts supply

• Long-term technical consultation and upgrades
